Plyterra Deck Logo

Advantages
High resistance to surface abrasion (Taber Test)
Resistance to environmental conditions and mechanical damage
Increased water-resistance
Strength and hardness
Wide range of film colors and densities

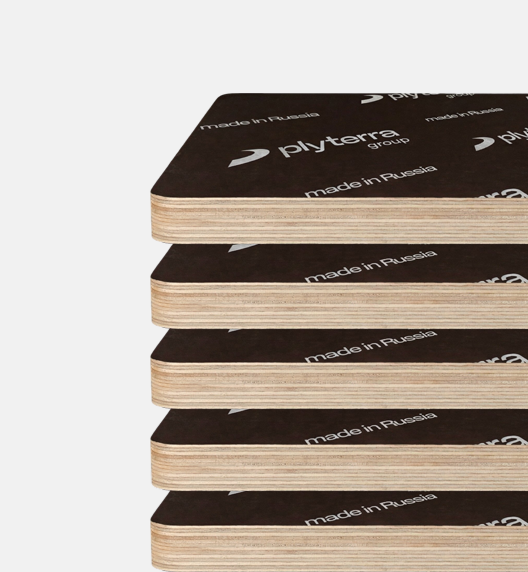

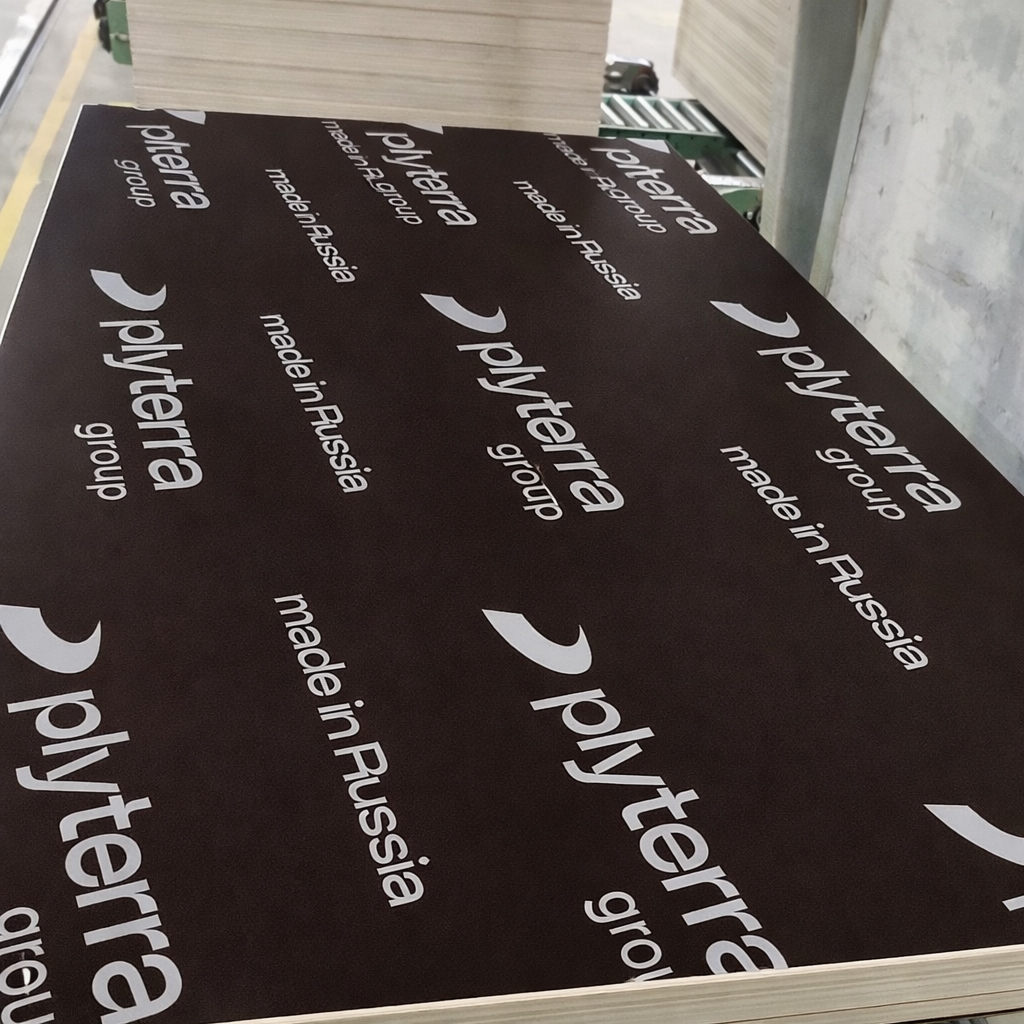

Plyterra Deck Logo is film-faced plywood Plyterra Deck with a signature logo on the surface that combines functionality and brand identity.

The durable smooth film impregnated with phenol-formaldehyde resin makes birch plywood more resistant to mechanical damage, moisture absorption and sunlight.

The edges of film-faced plywood are covered with acrylic paint
Specifications
Length and width (size), mm

2440х1220 (8х4) or 1220х2440 (4x8)

1250х2500 (8х4) or 2500х1250 (4х8)

cut-to-size

Thickness, mm
6,5; 9; 12; 15; 18; 21; 24; 27; 30; 35
Grade
1/1 (В/В)
Type of surface
smooth/smooth (F/F), smooth/uncoated (F/U)
Film density, g/m2
120/120
Formaldehyde emission
(limit value 3,5 mg/h х m2)
0,1-0,3 mg/h х m2
Formaldehyde emission class
E1
Moisture content, %
5-10
Density, kg/m3
680-720
Edges painting
upon request
Static bending strength (along the grain), MPa
no less than 25
Tensile strength (along the grain), MPa
no less than 30
Modulus of elasticity in static bending, MPa
no less than 7000
Standard
manufactured in accordance with GOST 53920-2010

Non-standard thicknesses and sizes are available to manufacture upon agreement with the customer
Application
Reusable formwork
Partitions in commercial transport
Framework for dome-shaped structures (dome houses)
