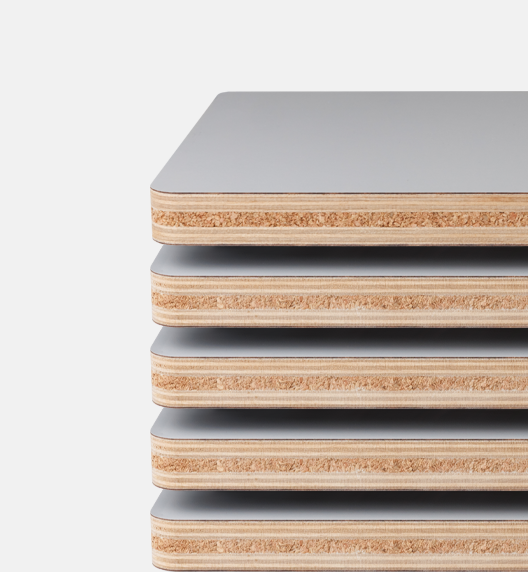

Plyguard Phon with HPL

Advantages
Medium smoke-generating capacity
Inflame-resistant and low flammable
Moderately hazardous in terms of combustion product toxicity
Exceptional sound-insulation properties
Choice of insulation material thickness
Plyguard Phon with HPL is a versatile material that combines excellent sound insulation properties, attractive appearance and high level of fire safety.

The panels can be used as a construction or decorative material in both interiors and exteriors.

HPL overlay is available in a various colors and textures
Specifications
Length and width (size), mm

1500х1500 (5х5)

1800х1500 (6х5)

2500х1250 (8х4)

2900х1500 (10х5)

Thickness, mm
16; 18; 21
Grade
1/1 (B/B)
Type of surface
overlaid with HPL on both sides
Cork thickness, mm
4; 6
HPL thickness, mm
0,8; 1; 1,3; 1,6
Formaldehyde emission
(limit value 3,5 mg/h х m2)
0,1 - 0,2 mg/h х m2
Formaldehyde emission class
E0,5
Moisture content, %
5-10
Density, kg/m3
830-860
Sound insulation index, dB
no less than 32
Static bending strength, MPa
no less than 22
Shear strength at the glue joint, MPa
no less than 1,2
Resistance to screws withdrawal
from plywood face, N/mm
95
Non-standard thicknesses and sizes are available to manufacture upon agreement with the customer
Application
Interior finishing of rooms with high sound insulation requirements
