Fire-Retardant Plywood — with fiberglass surface

Advantages

Moderate smoke-generating capacity

Inflame-resistant and low flammable

Moderately hazardous

Resistance to temperature fluctuations

Suitable for high-pressure water cleaning

Request for quote

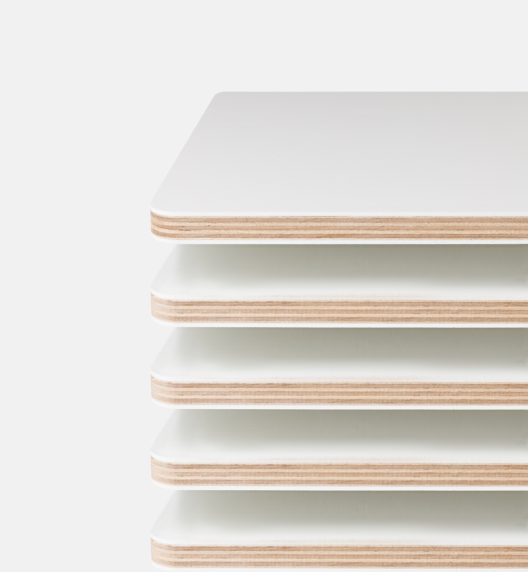

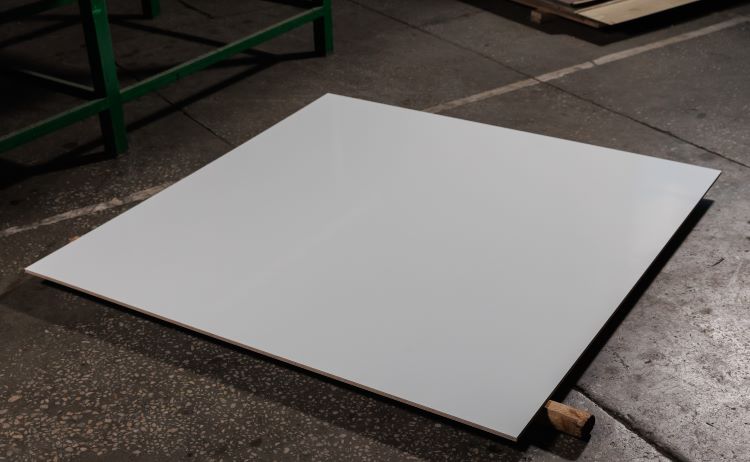

Plyguard with fiberglass is a multifunctional material overlaid on one side with fiberglass and on the other side with HPL.

This plywood has high physical and mechanical characteristics and is able to withstand heavy loads. Fiberglass has excellent performance properties and provides increased material strength.

Fiberglass is available in smooth and pebble textures that offers more design options

Specifications

Length and width (size), mm

1500х1500 (5х5)

1800х1500 (6х5)

2500х1250 (8х4)

2900х1250 (10х4)

2900х1500 (10х5)

Thickness, mm

8; 9; 10; 12; 15; 19; 20; 25; 30

Grade

1/1 (B/B)

Type of surface

overlaid on one side with fiberglass
and on the other side with HPL

HPL thickness, mm

1,3; 1,6; 2

Fiberglass thickness, mm

1,5; 2

Formaldehyde emission
(limit value 3,5 mg/h х m²)

0,1 - 0,2 mg/h х m²

Formaldehyde emission class

E0,5

Moisture content, %

5-10

Density, kg/m³

no more than 1200

Static bending strength, MPa

no less than 40

Shear strength at the glue joint, MPa

no less than 1,2

Resistance to screws withdrawal, N/mm

from plywood face: 112

from edges: 60

Show all the characteristicsСвернуть

Non-standard thicknesses and sizes are available to manufacture upon agreement with the customer

Application

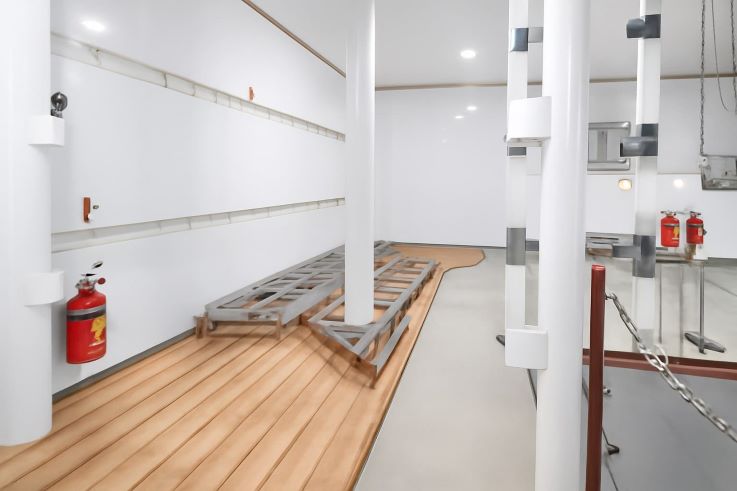

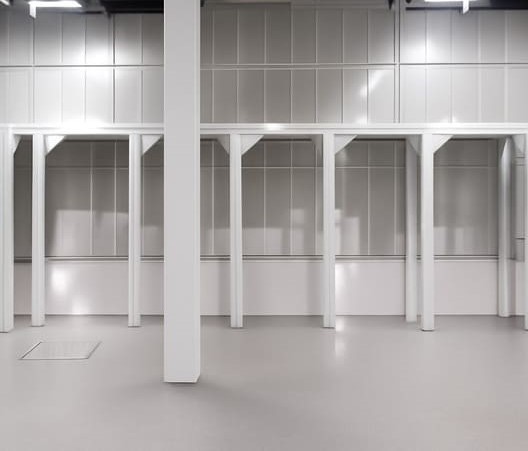

Finishing of ship compartments (fish processing factories, freezer holds)

Cladding of ceilings, walls, and floors in refrigerator vehicles

Cladding of walls in mobile blood donation centers

Certificates

Plyguard with fiberglass. Certificate of Conformity

Plyguard with fiberglass. Fire Safety Certificate

Plyguard with fiberglass. Environmental Certificate

Plyguard with fiberglass. Type Approval Certificate from Russian Maritime Register of Shipping
