Plyguard Phon

Advantages

Medium smoke-generating capacity

Inflame-resistant and low flammable

Moderately hazardous in terms of combustion product toxicity

Exceptional sound-insulation properties

Choice of insulation material thickness

Request for quote

Plyguard Phon is a brand of a special type of birch plywood with exceptional fire-resistance and sound-insulation properties.

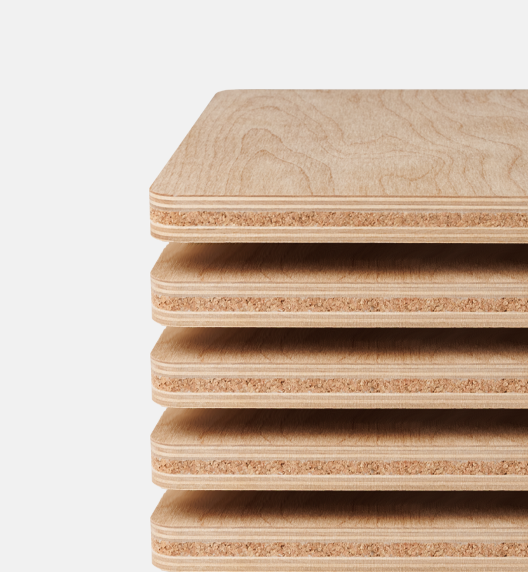

The panel structure includes a layer of technical cork that reduces noise and vibration level.

Sound-absorbing plywood has a lighter weight compared to standard plywood yet maintaining its strength characteristics

Specifications

Length and width (size), mm

1500х1500 (5х5)

1800х1500 (6х5)

2500х1250 (8х4)

2900х1500 (10х5)

Thickness, mm

16; 18; 21

Grades

1/2 (B/BB), 2/2 (BB/BB), 2/3 (BB/CP), 2/4 (BB/C), 3/4 (CP/C)

Type of surface

both sides sanded (S2), overlaid with decorative veneer

Cork thickness, mm

4; 6

Formaldehyde emission
(limit value 3,5 mg/h х m²)

0,1 - 0,2 mg/h х m²

Formaldehyde emission class

E0,5

Moisture content, %

5-10

Density, kg/m³

no more than 820

Sound insulation index, dB

no less than 31

Static bending strength, MPa

no less than 18

Shear strength at the glue joint, MPa

no less than 1,2

Resistance to screws withdrawal
from plywood face, N/mm

90

Show all the characteristicsСвернуть

Non-standard thicknesses and sizes are available to manufacture upon agreement with the customer

Application

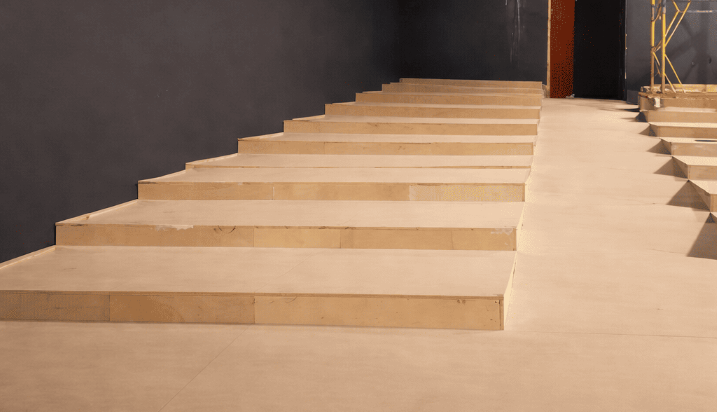

Interior finishing of rooms with high sound insulation requirements

Flooring in vehicles

Certificates

Plyguard Phon. Certificate of Conformity

Plyguard Phon. Safety Certificate for rail wagons manufacturing

Plyguard Phon. Fire Safety Certificate

Plyguard Phon. Type Approval Certificate from Russian River Register

Other products

moderate smoke-generating capacity

inflame-resistant and low flammable

moderately hazardous in terms of combustion product toxicity

high-quality bonding

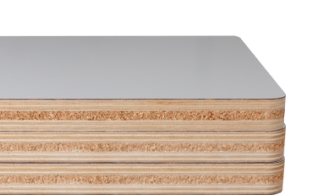

Plyguard Phon with HPL
