Plyguard with HPL

Advantages
Moderate smoke-generating capacity
Inflame-resistant and low flammable
Moderately hazardous
Wide range of colors
Resistance to environmental conditions

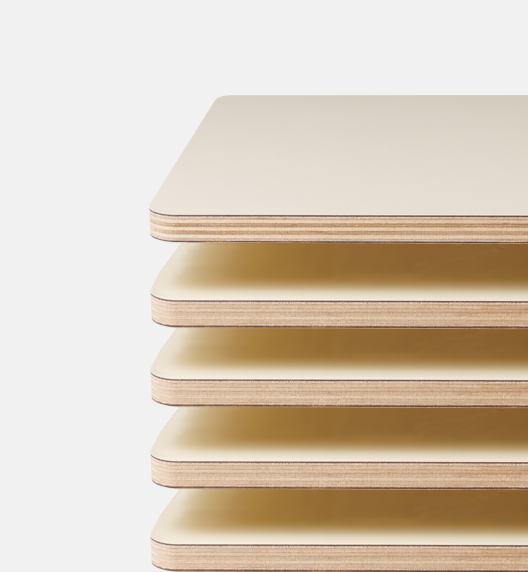

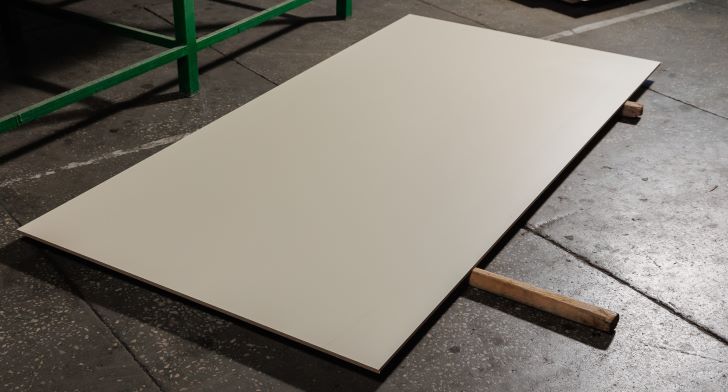

Plyguard with HPL is a construction and decorative material overlaid with fire-retardant decorative HPL (High-Pressure Laminate).

HPL provides high level of resistance to mechanical damage and moisture influence.

A wide range of decorative overlays will help to create the brightest individual projects
Specifications
Length and width (size), mm

1450х1250 (5х4)

1500х1500 (5х5)

2440х1220 (8x4)

2500х1250 (8х4)

2900х1490 (10х5)

2900х1250 (10х4)

Thickness, mm
6; 8; 9; 10; 12; 15; 16; 18; 19; 20; 21; 22; 24; 25; 28; 30
Grade
1/1 (B/B)
Type of surface
overlaid with HPL on both sides
HPL thickness, mm
0,8; 1; 1,3; 1,6
Formaldehyde emission
(limit value 3,5 mg/h х m2)
0,1 - 0,2 mg/h х m2
Formaldehyde emission class
E0,5
Moisture content, %
5-10
Density, kg/m3
no more than 1200
Static bending strength, MPa
no less than 40
Shear strength at the glue joint, MPa
no less than 1,2
Resistance to screws withdrawal, N/mm

from plywood face: 100

from edges: 60

Non-standard thicknesses and sizes are available to manufacture upon agreement with the customer
Application
Interior decoration
Wall panels
Furniture
